What We Do

Our Manufacturing
Services

End-to-end precision machining, fabrication and welding from prototype through to production. ISO 9001 certified, built around your drawings, tolerances and surface-finish requirements.

A 5-axis CNC milling machine machining a metal component
CNC Milling
01

CNC Milling

Our 3, 4 and 5-axis CNC milling centers produce complex prismatic components with exceptional accuracy. From simple flat parts to intricate contoured surfaces, we deliver consistent quality at scale for the automotive, aerospace and industrial sectors.

Axes
3 / 4 / 5-Axis
Tolerance
Down to ±0.01mm*
Work Envelope
Up to ~1200×600×500mm
Batch Size
Prototype to series
  • 3, 4 & 5-axis CNC milling centres
  • Complex contour, profile and pocket milling
  • Tight tolerance bores, slots and datums
  • Materials: carbon steel, stainless, aluminium, titanium, engineering plastics
  • Material certificates and dimensional reports available on request
  • Surface treatments: anodising, plating, painting on request

*Achievable tolerances depend on geometry, material and inspection method — confirmed per project.

Request a Milling Quote
A CNC lathe turning a cylindrical steel component
CNC Turning
02

CNC Turning

High-precision CNC turning on modern lathes with live tooling capability for cylindrical, conical and threaded components. Our mill-turn centres allow complete machining in a single setup, reducing lead times and improving accuracy.

Diameter Range
~5mm — 500mm
Tolerance
Project-specific
Live Tooling
Yes — Mill/Turn
Traceability
On request
  • CNC turning & Swiss-type machining
  • Live tooling: milling & drilling in one setup
  • Threading — internal & external, metric and imperial
  • Materials: carbon steel, stainless, brass, bronze, aluminium, Inconel
  • Diameter 5mm to 500mm, lengths to 2000mm
  • Post-process grinding, coating and assembly
Request a Turning Quote
CNC drilling machine producing precision holes in a metal part
CNC Drilling
03

CNC Drilling

Precision CNC drilling, tapping, boring and reaming for components requiring exact hole positioning and superior surface quality. Our deep-hole drilling capability handles complex requirements for hydraulic, pneumatic and precision engineering applications.

Positional Accuracy
±0.01mm
Thread Range
M2 — M100
Deep Hole
Up to L/D 30:1
Bore Finish
Ra 0.8μm
  • CNC drilling & multi-spindle drilling centres
  • Deep-hole drilling — L/D ratio up to 30:1
  • Boring, reaming and honing for precision fits
  • Tapping — blind and through, metric & UNC/UNF
  • Counterboring and countersinking
  • All metallic materials including hardened steels
Request a Drilling Quote
CNC surface grinding machine in operation
CNC Grinding
04

CNC Grinding

Surface and cylindrical grinding to achieve superior surface finishes and tight dimensional tolerances on hardened components. Essential for tool steels, die components, bearing journals and precision shafts requiring Ra <0.4μm surface quality.

Surface Finish
Ra 0.4μm
Diameter Tolerance
±0.002mm
Max Surface
700×300mm
Hardness
Up to 65 HRC
  • CNC surface grinding (flat, profile)
  • Cylindrical grinding — OD and ID
  • Centreless grinding for shafts and pins
  • Hardened steels, tool steels, stainless steel
  • Post heat-treatment finish grinding
  • Tight roundness and cylindricity tolerances
Request a Grinding Quote
Fiber laser cutting steel sheet metal
Laser Cutting
05

Laser Cutting

Fiber laser cutting delivers clean, burr-free cuts on sheet metal and structural profiles up to 25mm thick. Our high-power laser systems handle both small prototype runs and large-volume production orders with fast turnaround and consistent precision.

Max Thickness
25mm steel
Cutting Area
3000×1500mm
Kerf Width
0.1–0.2mm
Positioning
±0.05mm
  • Fiber laser cutting — steel, stainless, aluminium, copper, brass
  • Plasma cutting for heavy plate >25mm
  • Sheet metal cutting area 3000×1500mm
  • Press brake forming and bending
  • Punching, notching and folding
  • Powder coating and finishing on request
Request a Laser Cutting Quote
MIG welding of a steel assembly
Welding
06

Welding Services

Our certified welders produce structural and precision welds to international standards. From MIG and TIG welding to robotic welding for high-volume applications, we ensure strong, clean joints that meet the most demanding specifications in structural, pressure and precision engineering.

Processes
MIG / TIG / MAG
Standard
ISO 3834 aligned
Robotic
Available
Materials
Steel, SS, Al
  • MIG / TIG / MAG welding — all positions
  • Robotic welding option for higher-volume work
  • Welding processes aligned with ISO 3834 quality requirements
  • Carbon steel, stainless steel, aluminium
  • Structural assemblies, frames, brackets and sub-assemblies
  • Weld inspection and documentation available on request
Request a Welding Quote

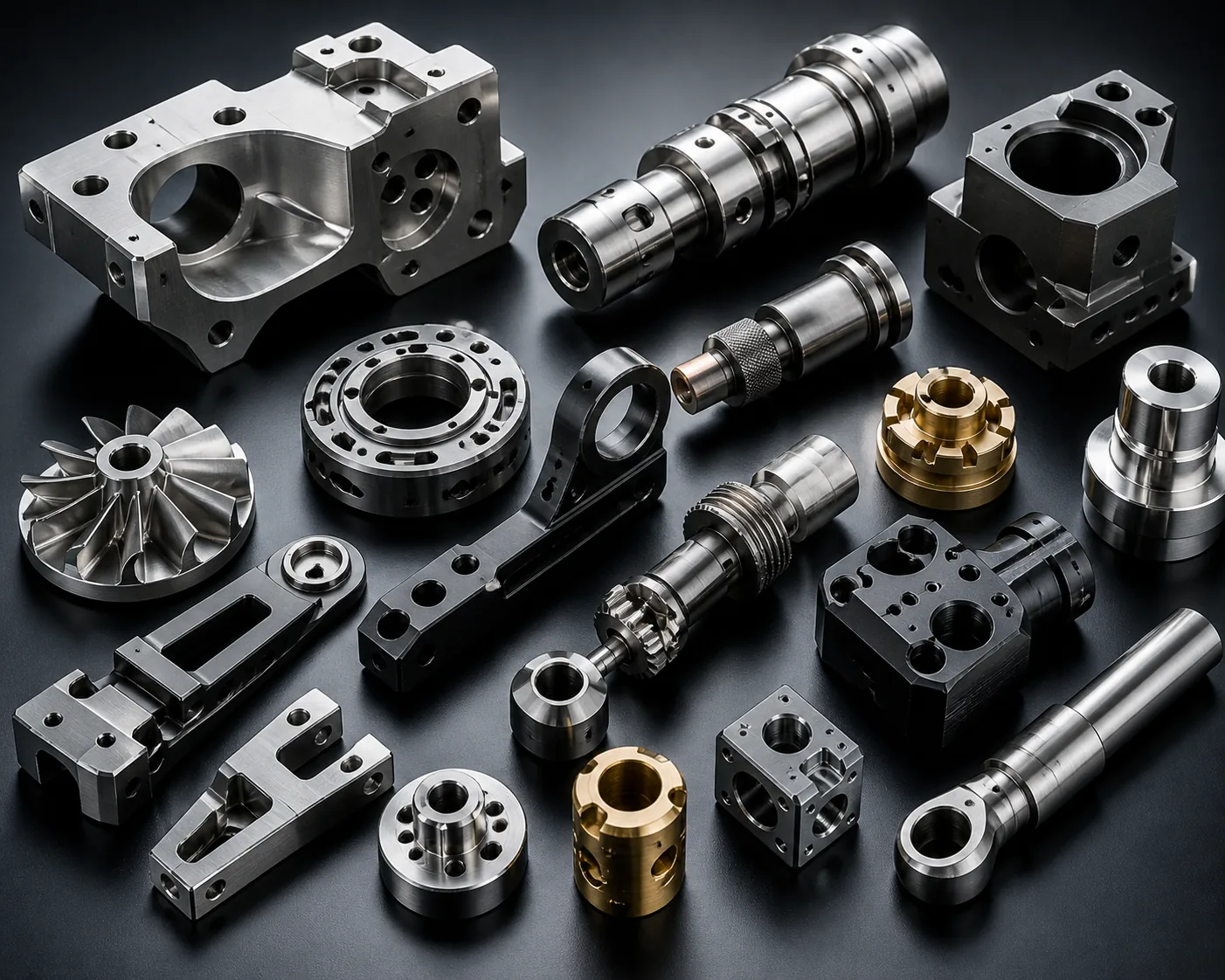

Selection of finished CNC machined components
Custom Solutions
07

Custom Solutions

Beyond standard machining, we engineer complete manufacturing solutions from design consultation through to finished, tested assemblies. Our multi-process capability means we can manage the entire supply chain under one roof, reducing your lead time and total cost.

DFM Feedback
Included
Prototype
Fast-track on request
Assembly
Available
Traceability
Per project
  • Design for manufacture (DFM) consultation
  • Multi-process assemblies under one roof
  • Surface treatments: anodising, zinc plating, powder coating
  • Heat treatment coordination
  • Full lot traceability and documentation
  • Prototype to full production scaling
Discuss Your Project

Ready to Get Started?

Upload your drawings and receive a detailed quote within 24 hours.
